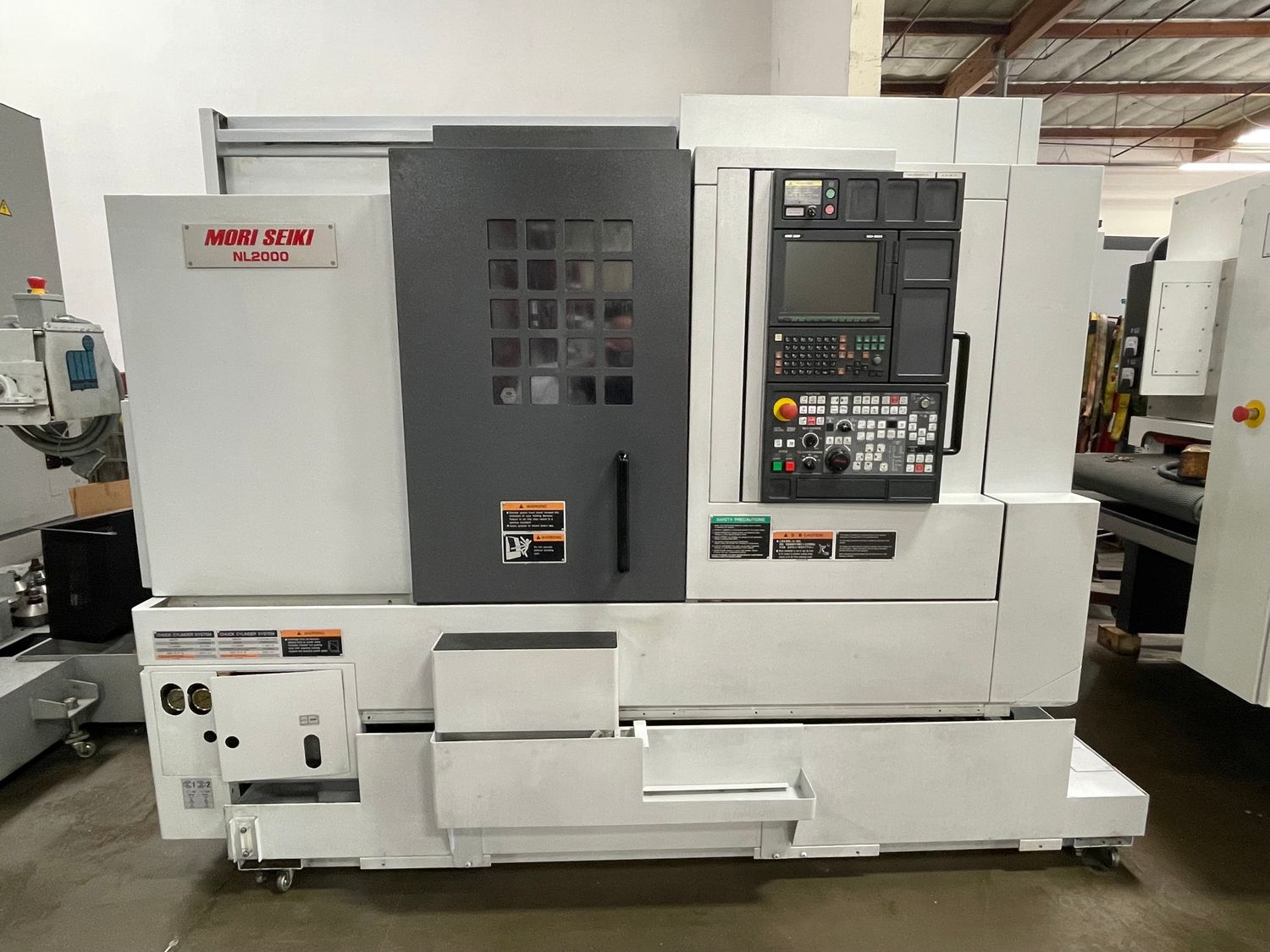

2010 Mori Seiki NL-2000SY/ 500

Specifications

Product LocationAnaheim, CA
SWING OVER BED36.4″
SWING OVER CROSS SLIDE29.7″
MAX. TURNING DIAMETER14″
MAX. TURNING LENGTH20″
BAR WORK CAPACITY2.5″
X-AXIS TRAVEL10.2″
Y-AXIS TRAVEL3.9″
Z-AXIS TRAVEL23.2″
HEADSTOCK 2 TRAVEL B-AXIS22.2″
MAX. SPINDLE SPEED 1/25,000/6000 RPM
NUMBER OF TOOL STATIONS12
MAX ROTARY SPINDLE SPEED6,000 RPM
SPINDLE DRIVE MOTOR MAIN/SUB25/15 HP
ROTARY TOOL SPINDLE MOTOR7.5 HP
MASS OF MACHINE12,760 LBS
MACHINE DIMENSIONS106″ X 81″ X 84″ TALL

Features

MORI MSX-850 CONTROL (MITSUBISHI)

Y-AXIS/ LIVE MILLING

MAIN SPINDLE/SUB-SPINDLE

MULTIPLE LIVE & STATIC TOOLS

TOOL PRESETTER

CHIP CONVEYOR

ATS COLLET SYSTEM
