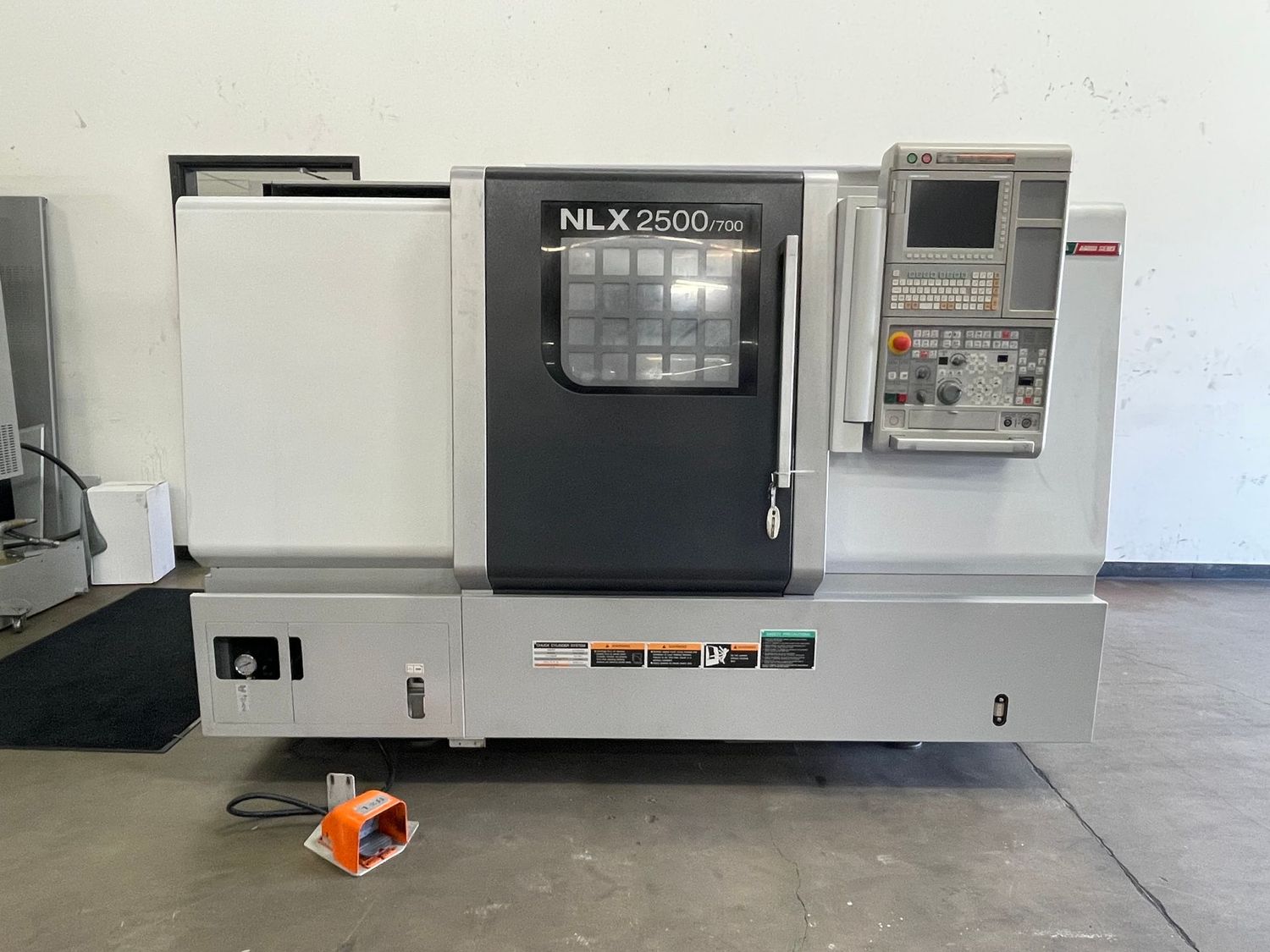

2014 DMG Mori NLX-2500/ 700

Specifications

Product Location Anaheim, CA
Swing Over Bed                                          23.2”
Swing Over Cross Slide                            14.2”
Max. Turning Dia.                                       18.1”
Max. Turning Length                                28.6”
Bar Work Capacity                                     3.1”
Travels (X-Z)                                                10.2” x 31.3”
Chuck Size                                                    10”
Number of Tool Stations                        12
Max. Spindle Speed                                 4,000 RPM
Through Spindle Dia.                                3.6”
Rapids (XZ)                                                   1.181”/ 787.4”
Tailstock Travel                                          25.6”
Spindle Motor                                            25 HP
Machine Dimensions                               103.1” x 74.7” x 71.9”
Weight                                                           9900 lbs

Features

M730BM Control

Chip Conveyor

All Available Manuals

Standard Static Tooling Package
