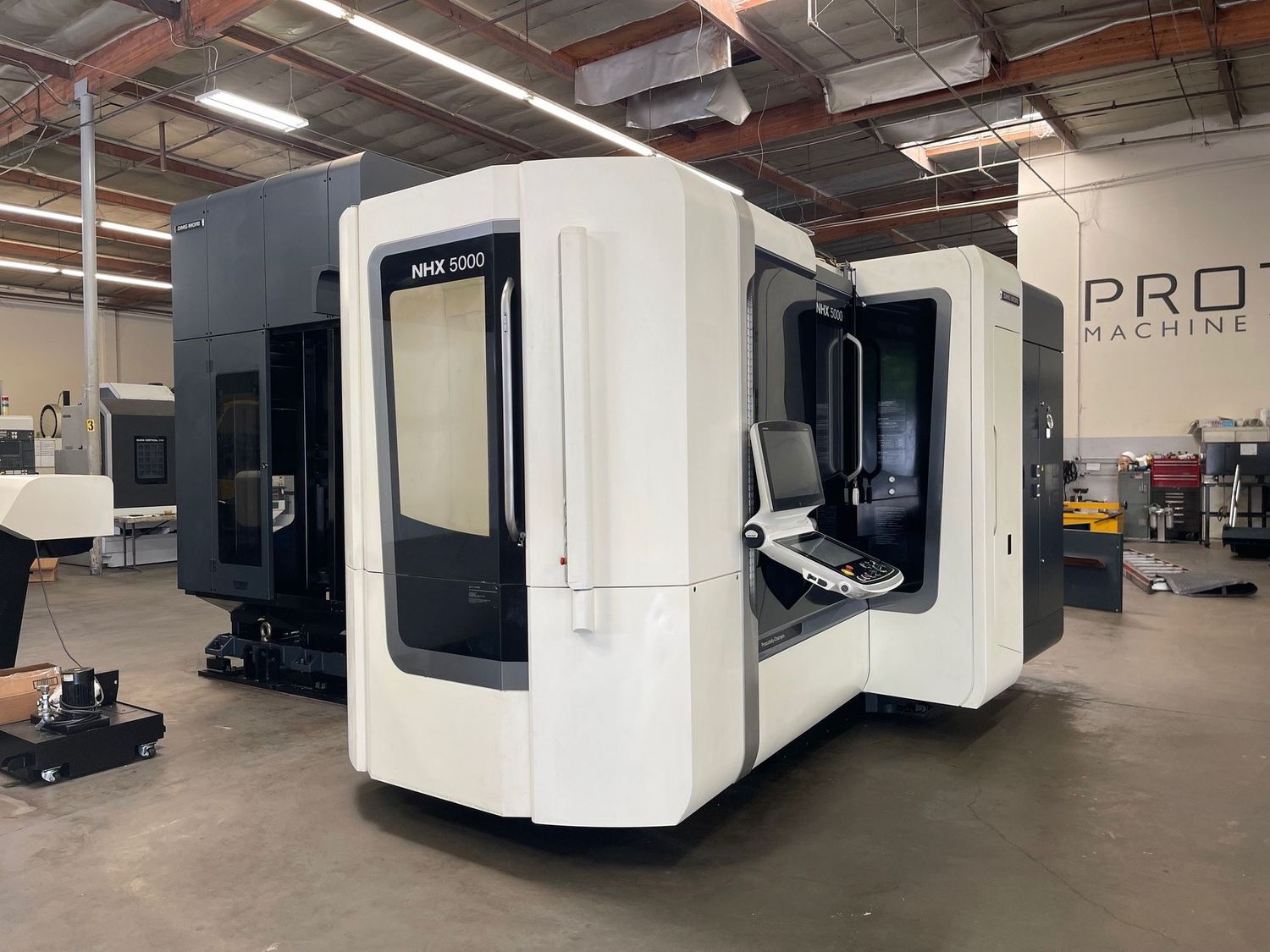

2016 DMG MORI NHX-5000

Name: 2016 DMG MORI NHX-5000
SKU: 00021
Availability: InStock

Store / HORIZONTAL MACHINING CENTER

$0.00

In stock

Product Details

Specifications:
X-Axis Travel: 28.7"
Y-Axis Travel:. 28.7"
Z-Axis Travel: 34.6"
Distance from Pallet Surface to Spindle Center3.1" - 31.9"
Distance from Floor to Pallet Surface: 47.2"
Number of Pallets:. 2
Pallet Size: 19.7" x 19.7"
Pallet Load Capacity: 1,100 Lbs
Max. Workpiece Swing Diameter:31.5"
Max. Workpiece Height: 39.4"
Maximum Spindle Speed: 15,000 RPM
Spindle Taper:CT-40
Spindle Motor: . 50 HP
Rapid Traverse: 2,362 IPM
Tool Storage Capacity:180
Max Tool Weight:26.4 Lbs

Equipped With:
ERGOline w/ Celos Control (Mitsubishi 730UM)
Full 4 Axis
Chip Conveyor
Chip Blaster High Pressure Coolant Unit
6 Additional Pallets
All Available Manuals
